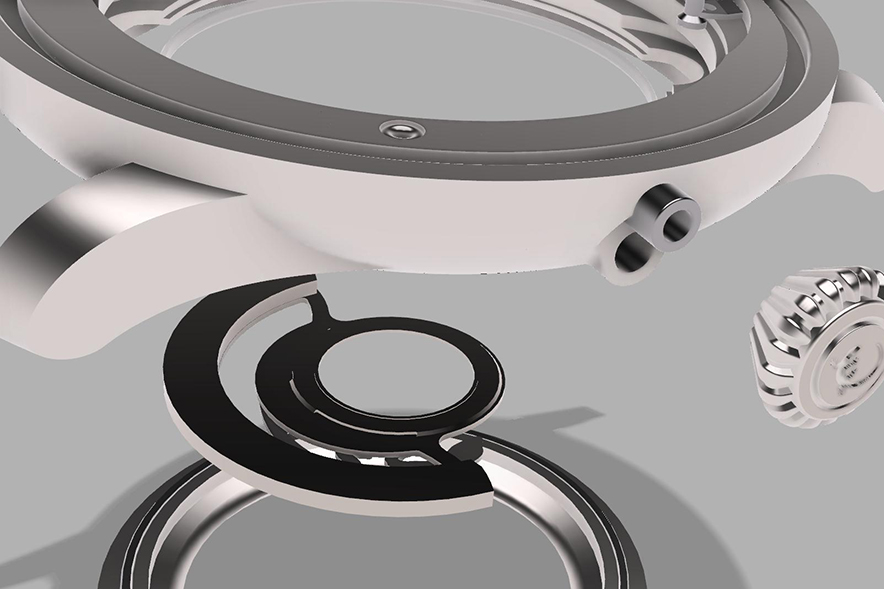

Bezel Ø42mm Snap-on system Polished titanium grade 5 With one NBR O-ring for water-resistance
Bezel crystal Ø37.60mm Double domed sapphire crystal with antireflective coating on each side. ICON logo by silver metallization. Pressed on Hytrel I-ring for water-resistance
Case body Ø42mm Sandblasted titanium grade 2 Tube for the crown in titanium grade 5
Crown Ø6.50mm Polished titanium grade 5 Lizard and circle engraved by deep etching (matt finish) With 2 NBR O-rings for water-resistance
Case back Ø33.40mm Sandblasted titanium grade 2 Markings by deep acid etching Limited edition XX/50 Pressed on Sanfil I-ring
Case back crystal Ø25.10mm Flat sapphire
Movement Dubois-Depraz Automatic 14400 module + ETA 2892A2 TOP base movement Luxe version (top of bridges = perlage + snail finish; rhodium plated)
Functions : Jumping hours by disc + wandering minutes by disc, both with custom-made fonts/layout Custom-made oscillating weight in tungsten alloy, rhodium plated + markings with yellow gold plating + brass applied lizard made by stamping, yellow gold finish
Dial Polished genuine onyx stone 2 frames in polished brass with titanium-like coating
Water-resistance 5 bar = 50m
Tongue buckle Unique to the ICON Duesey, all pollished titanium grade 2
Strap Genuine alligator leather (alligator mississppiensis) Turned edges, no stitching Black calf leather lining with soft touch (rubber-like) Length : 75mm x 120mm Width : 22mm at the case ; 20mm at the buckle Thickness: 3.5mm at the case; 2mm at the buckle 7 rectangular holes
Warranty “ICON warrants material and manufacturing defects existing at the time of delivery to the Customer provided that the defects have been caused by the use of repeatedly faulty materials or workmanship. This warranty is granted for a period of 24 months, starting at the Delivery Date. The exclusive remedy of the Customer for any breach of this warranty shall be the replacement of the same model and quantity. Breaches of warranty will require notification to ICON in writing, stating in reasonable detail the nature of the breach, such notice to be given not later than 10 days after having become aware of the facts constituting the breach. All other remedies which may be available under the applicable statutory law are hereby waived and excluded. Individual Product returns from the market will be serviced by the Customer through its service organisation (and at its cost) in the different countries.”
